Picture of 1268 MALE CONNECTOR IMPERIAL

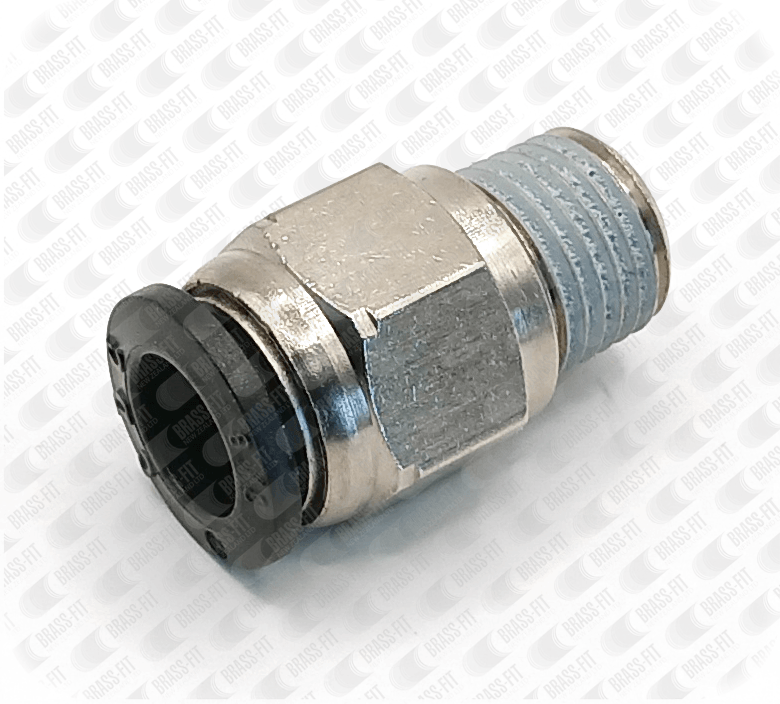

1268 MALE CONNECTOR IMPERIAL

Push-to-connect adaptor with a male BSPT thread. The body is nickel-plated brass with a POM plastic collet and it has a stainless-steel release sleeve for instant tube connection.

Manufacturer: CDC

One-touch push-to-connect for easy installation
Pre applied sealant on external thread
For use on AIR ONLY
Working pressure, 0-150psi
Working Temperature 0-60°C

Overview

One-touch push-to-connect for easy installation
Pre applied sealant on external thread
For use on AIR ONLY
Working pressure, 0-150psi
Working Temperature 0-60°C

Item No	Description	Tube Od	Pipe Thread(Male)	U.O.M	Price	Qty	Add to Favourites	Add to cart
PF12680402	1268 1/4 x 1/8 BSPT MALE CONNECTOR (PC 1/4-01)	1/4"	1/8" BSPT	EACH	$3.59
PF12680404	1268 1/4 x 1/4 BSPT MALE CONNECTOR (PC 1/4-02)	1/4"	1/4" BSPT	EACH	$3.78
PF12680504	1268 5/16 x 1/4 BSPT MALE CONNECTOR (PC 5/16-02)	5/16"	1/4" BSPT	EACH	$4.23
PF12680602	1268 3/8 x 1/8 BSPT MALE CONNECOR (PC 3/8 - 01)	3/8"	1/8" BSPT	EACH	$5.00
PF12680604	1268 3/8 x 1/4 BSPT MALE CONNECTOR (PC 3/8-02)	3/8"	1/4" BSPT	EACH	$5.12
PF12680606	1268 3/8 x 3/8 BSPT MALE CONNECTOR (PC 3/8-03)	3/8"	3/8" BSPT	EACH	$5.44
PF12680804	1268 1/2 x 1/4 BSPT MALE CONNECTOR (PC 1/2-02)	1/2"	1/4" BSPT	EACH	$6.41
PF12680806	1268 1/2 x 3/8 BSPT MALE CONNECTOR (PC 1/2-03)	1/2"	3/8" BSPT	EACH	$6.53
PF12680808	1268 1/2 x 1/2 BSPT MALE CONNECTOR (PC 1/2-04)	1/2"	1/2" BSPT	EACH	$7.56
