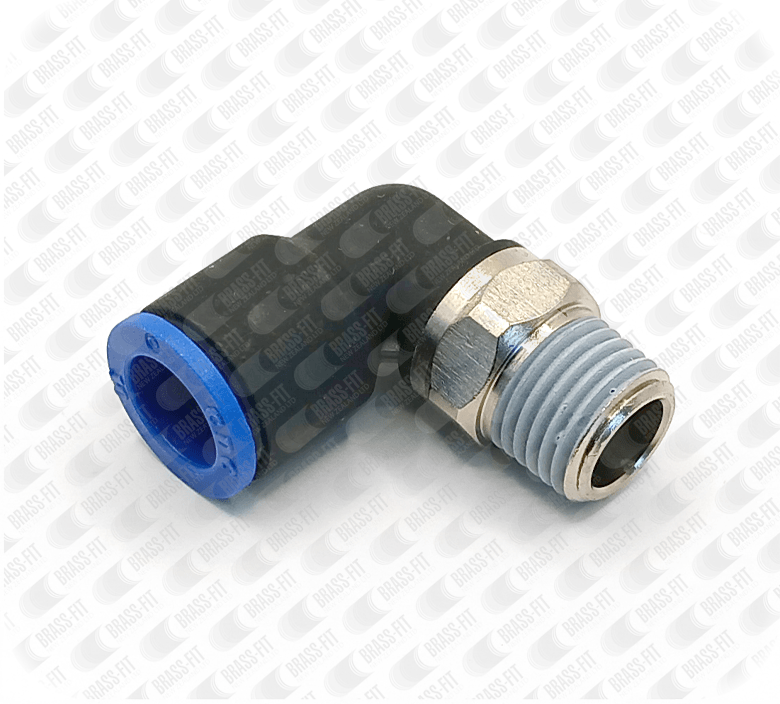

1569 SWIVEL MALE ELBOW 90° METRIC

Push-to-connect 90° Swivel Elbow adaptor with a male BSPT thread. The body is nickel-plated brass with a POM plastic collet and it has a stainless-steel release sleeve for instant tube connection.
Manufacturer: TAC
  •           One-touch push-to-connect for easy installation
  •           Pre applied sealant on external thread
  •           For use on AIR ONLY
  •           Working pressure, 0-150psi
  •           Working Temperature 0-60°C
  •           Swivel Body for easy installation
  •           One-touch push-to-connect for easy installation
  •           Pre applied sealant on external thread
  •           For use on AIR ONLY
  •           Working pressure, 0-150psi
  •           Working Temperature 0-60°C
  •           Swivel Body for easy installation
Item No Description Tube Od Pipe Thread(Male) U.O.M Price Qty Add to Favourites Add to cart
PF15690402
1569 4mm x 1/8 BSPT MALE SWIVEL ELBOW (PL 04-01)
4MM 1/8" BSPT EACH $4.61
PF15690404
1569 4mm x 1/4 BSPT MALE SWIVEL ELBOW (PL 04-02)
4MM 1/4" BSPT EACH $4.92
PF15690602
1569 6mm x 1/8 BSPT MALE SWIVEL ELBOW (PL 06-01)
6MM 1/8" BSPT EACH $4.67
PF15690604
1569 6mm x 1/4 BSPT MALE SWIVEL ELBOW (PL 06-02)
6MM 1/4" BSPT EACH $5.06
PF15690802
1569 8mm x 1/8 BSPT MALE SWIVEL ELBOW (PL 08-01)
8MM 1/8" BSPT EACH $5.44
PF15690804
1569 8mm x 1/4 BSPT MALE SWIVEL ELBOW (PL 08-02)
8MM 1/4" BSPT EACH $5.76
PF15690806
1569 8mm x 3/8 BSPT MALE SWIVEL ELBOW (PL 08-03)
8MM 3/8" BSPT EACH $6.41
PF15691004
1569 10mm x 1/4 BSPT MALE SWIVEL ELBOW (PL 10-02)
10MM 1/4" BSPT EACH $7.30
PF15691006
1569 10mm x 3/8 BSPT MALE SWIVEL ELBOW (PL 10-03)
10MM 3/8" BSPT EACH $7.43
PF15691008
1569 10mm x 1/2 BSPT MALE SWIVEL ELBOW (PL 10-04)
10MM 1/2" BSPT EACH $10.30
PF15691204
1569 12mm x 1/4 BSPT MALE SWIVEL ELBOW (PL 12-02)
12MM 1/4" BSPT EACH $8.65
PF15691206
1569 12mm x 3/8 BSPT MALE SWIVEL ELBOW (PL 12-03)
12MM 3/8" BSPT EACH $8.96
PF15691208
1569 12mm x 1/2 BSPT MALE SWIVEL ELBOW (PL 12-04)
12MM 1/2" BSPT EACH $11.22
PF15691606
1569 16mm x 3/8 BSPT MALE SWIVEL ELBOW (PL 16-03)
16MM 3/8" BSPT EACH $18.88
PF15691608
1569 16mm x 1/2 BSPT MALE SWIVEL ELBOW (PL 16-04)
16MM 1/2" BSPT EACH $20.03
